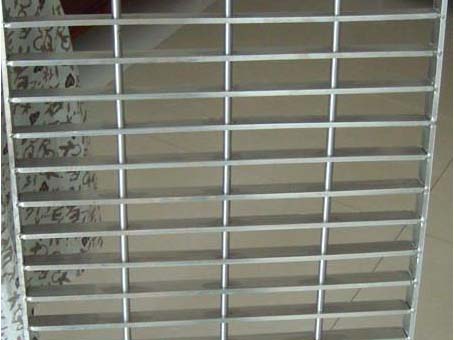

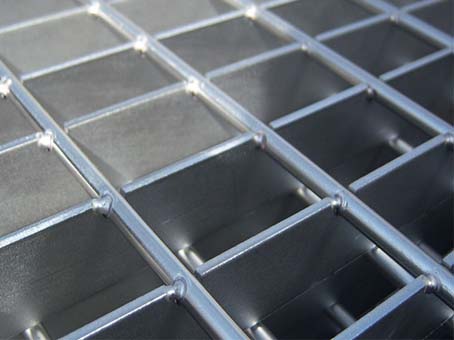

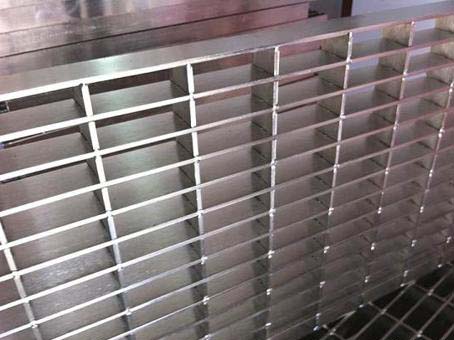

不銹鋼鋼格板是由不銹鋼材料扁鋼和橫桿按一定間距經煒排列，采用高壓電阻壓焊機自動化設備焊接成的鋼格板制品，經切割，開孔，包邊等工序加工而成客戶要求的產品。具有較強的防腐性能，外觀整潔，裝飾效果相當理想，但是一般價格較高。
不銹鋼鋼格板一般選用304、316、301等。304耐腐蝕能力一般，最為常用，推薦使用。316（316L）耐腐蝕能力強，價格較貴。301耐腐蝕能力弱，價格較便宜。

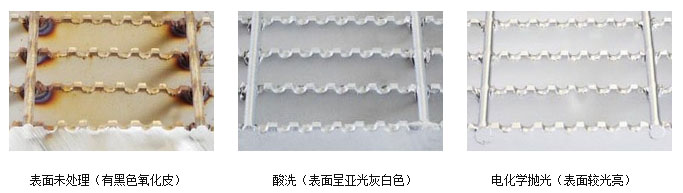

不銹鋼格板表面處理
不銹鋼鋼格板在生產過程中，經過壓焊、切割等加溫處理會產生黑色氧化皮。表面需要二次處理，一般處理的方法有三種。
1、酸洗，表面呈亞光灰白色。
2、電化學拋光，表面較光亮。
3、成品經加熱和拋光處理，后進行電化學拋光，最后進行鍍鉻處理，可達到鏡面效果。
不銹鋼鋼格板的用處是非常廣泛的，特別是在一些有要求高強度，環境惡劣，需耐酸、堿腐蝕的場合。其易于清掃，防腐蝕等特點又可安裝在生產化學原料的車間，即美觀又實用。
不銹鋼鋼格板規格型號理論重量表
| 規格型號 麻花鋼6mm 麻花鋼8mm | 規格型號 麻花鋼6mm 麻花鋼8mm | 規格型號 麻花鋼6mm 麻花鋼8mm | |||||||||
| 203/30/100 17.7014 19.7014 | 305/30/50 44.6809 48.6809 | 455/40/100 49.46105 51.46105 | |||||||||
| 205/30/100 29.1206 31.1206 | 403/30/50 35.4028 39.4028 | 503/40/100 32.5305 34.5305 | |||||||||
| 303/30/100 25.5521 27.5521 | 404/30/50 46.822 50.822 | 504/40/100 43.6325 45.6325 | |||||||||
| 304/30/100 34.1165 36.1165 | 405/30/50 58.2412 62.2412 | 505/40/100 54.7345 56.7345 | |||||||||
| 305/30/100 42.6809 44.6809 | 455/30/50 65.02135 69.02135 | 203/40/50 16.2122 20.2122 | |||||||||
| 403/30/100 33.4028 35.4028 | 503/30/50 43.2535 47.2535 | 205/40/50 25.0938 29.0938 | |||||||||
| 404/30/100 44.822 46.822 | 504/30/50 57.5275 61.5275 | 403/40/50 28.4244 32.4244 | |||||||||
| 405/30/100 56.2412 58.2412 | 505/30/50 71.8015 75.8015 | 404/40/50 37.306 41.306 | |||||||||
| 455/30/100 63.02135 65.02135 | 203/40/100 14.2122 16.2122 | 405/40/50 46.1876 50.1876 | |||||||||
| 503/30/100 41.2535 43.2535 | 205/40/100 23.0938 25.0938 | 403/40/50 28.4244 32.4244 | |||||||||
| 504/30/100 55.5275 57.5275 | 403/40/100 26.4244 28.4244 | 404/40/50 37.306 41.306 | |||||||||
| 505/30/100 69.8015 71.8015 | 404/40/100 35.306 37.306 | 405/40/50 46.1876 50.1876 | |||||||||
| 203/30/50 19.7014 23.7014 | 405/40/100 44.1876 46.1876 | 455/40/50 51.46105 55.46105 | |||||||||
| 205/30/50 31.1206 35.1206 | 403/40/100 26.4244 28.4244 | 503/40/50 34.5305 38.5305 | |||||||||
| 303/30/50 27.5521 31.5521 | 404/40/100 35.306 37.306 | 504/40/50 45.6325 49.6325 | |||||||||
| 304/30/50 36.1165 40.1165 | 405/40/100 44.1876 46.1876 | 505/40/50 56.7345 60.7345 |
|
型號規格 理論重量 |
|
型號規格 理論重量 |
型號規格 理論重量 |
型號規格 理論重量 |
|||
|
203/30/30 29.6582 |
404/40/40 61.854 |
203/30/40 26.169 |
404/30/50 65.4225 |
||||
|
205/30/30 51.2278 |
405/40/40 78.3484 |
205/30/40 45.201 |
405/30/50 82.8685 |
||||
|
403/30/30 44.4873 |
455/40/40 88.14195 |
403/30/40 39.2535 |
455/30/50 93.2270625 |
||||
|
404/30/30 60.6645 |
503/40/40 56.6995 |
404/30/40 53.5275 |
503/30/50 59.970625 |
||||
|
405/30/30 76.8417 |
504/40/40 77.3175 |
405/30/40 67.8015 |
504/30/50 81.778125 |
||||
|
403/30/30 59.3164 |
505/40/40 97.9355 |
403/30/40 52.338 |
505/30/50 103.585625 |
||||
|
404/30/30 80.886 |
203/50/50 18.3183 |
404/30/40 71.37 |
203/40/50 20.49905 |
||||
|
405/30/30 102.4556 |
205/50/50 31.6407 |
405/30/40 90.402 |
205/40/50 35.40745 |
||||
|
455/30/30 115.26255 |
403/50/50 27.47745 |
455/30/40 101.70225 |
403/40/50 30.748575 |
||||
|
503/30/30 74.1455 |
404/50/50 37.46925 |
503/30/40 65.4225 |
404/40/50 41.929875 |
||||
|
504/30/30 101.1075 |
405/50/50 47.46105 |
504/30/40 89.2125 |
405/40/50 53.111175 |
||||
|
505/30/30 128.0695 |
403/50/50 36.6366 |
505/30/40 113.0025 |
403/40/50 40.9981 |
||||
|
203/40/40 22.6798 |
404/50/50 49.959 |
203/30/50 23.98825 |
404/40/50 55.9065 |
||||
|
205/40/40 39.1742 |
405/50/50 63.2814 |
205/30/50 41.43425 |
405/40/50 70.8149 |
||||
|
403/40/40 34.0197 |
455/50/50 71.191575 |
403/30/50 35.982375 |
455/40/50 79.6667625 |
||||
|
404/40/40 46.3905 |
503/50/50 45.79575 |
404/30/50 49.066875 |
503/40/50 51.247625 |
||||
|
405/40/40 58.7613 |
504/50/50 62.44875 |
405/30/50 62.151375 |
504/40/50 69.883125 |
||||
|
403/40/40 45.3596 |
505/50/50 79.10175 |
403/30/50 47.9765 |
505/40/50 88.518625 |
||||
不銹鋼鋼格板應用范圍
不銹鋼鋼格板的用處是非常廣泛的，特別是在一些有要求高強度，環境惡劣，需耐酸、堿腐蝕的場合。其易于清掃，防腐蝕等特點又可安裝在生產化學原料的車間，即美觀又實用。
